Denovo Audio OS-11B 1" Oblate Waveguide Bolt-On

Denovo Audio OS-11B 1" Oblate Waveguide Bolt-On

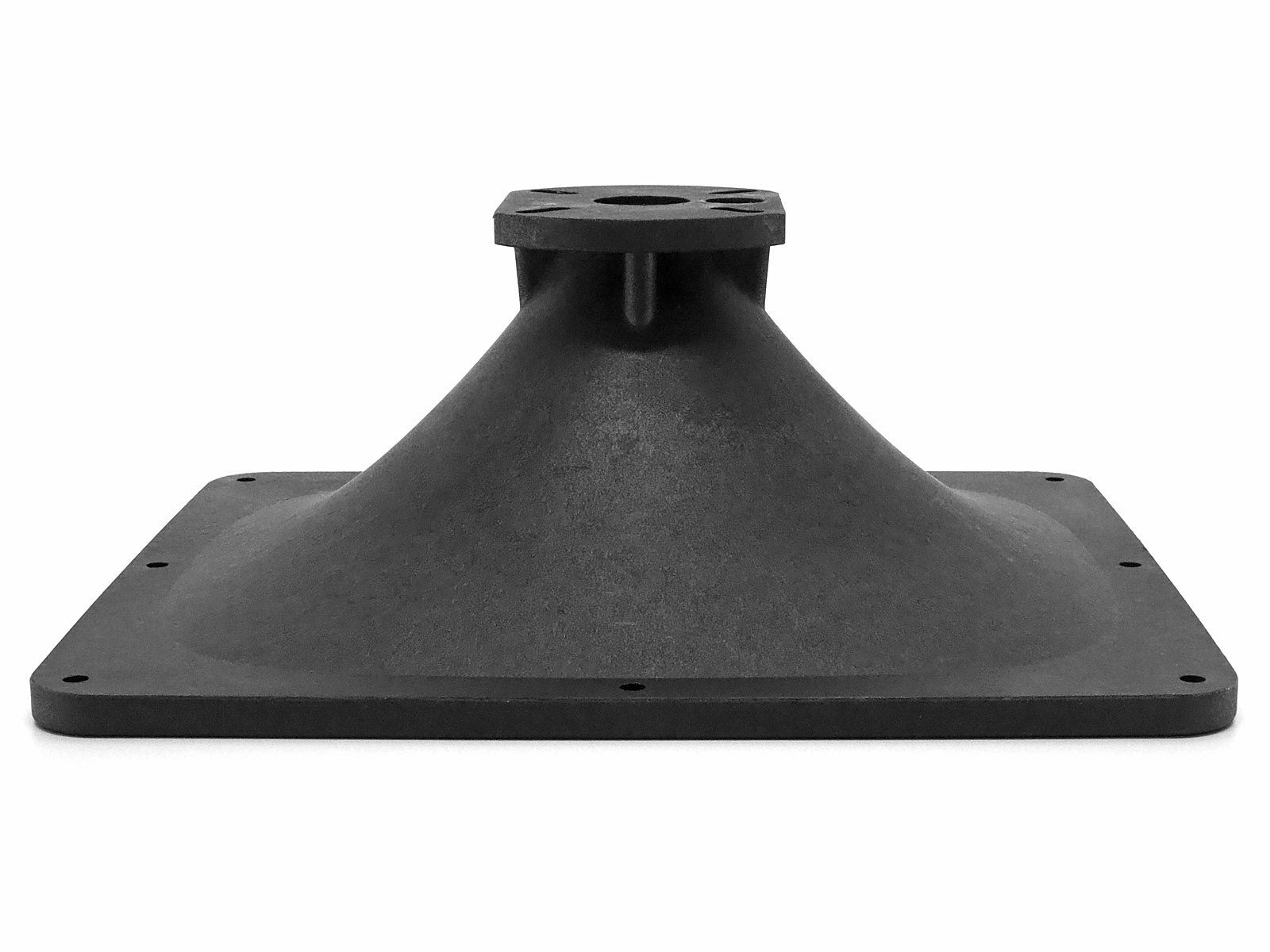

The Denovo OS-11B is a bolt-on "Oblate Spheroidal" waveguide that improves directivity for a more controlled sound dispersion. This model works well for home audio design where you don't want super focused sound.

Product Highlights

OS shape for improved directivity
Perfect for home audio speaker design
Well damped fiber reinforced construction

Brand: Denovo Audio

Cinergy part # 65-270

In stock

Price: $26.80

Ordering Notice:

* Price is per waveguide, minimum order is two. If you need a single, please contact customer service before ordering.

Quantity

Frequently Bought Together

Description

The Denovo Audio OS-11B is an Oblate Spheroidal design. The curved shape of an OS waveguide helps reduce diffraction effects, which then reduces distortion and coloration of the sound. The shape also improves directivity for a more focused sound dispersion. This can be particularly beneficial in applications where the sound needs to be directed towards a specific area or audience. .

Helpful Note: Recommended for woofer sizes from 8" - 15". Minimum recommended crossover for a waveguide of this size would be about 1200hz. This model has a light matte finish but can be spray painted to make it look it's best. It's about 3/8" thick and made from fiber reinforced plastic so overall construction is very solid and well damped.

Denovo Audio Specifications

Model	OS-11B
Width	11.25 inches
Height	9.75 inches
Overall Depth	4.375 inches
Throat Diameter	1 inch (25mm)
Driver Mount	2 or 4 bolt
Frequency Response	1.2khz - 20khz
Material	fiber reinforced plastic
Weight	1.6 pounds

Denovo Audio

Performs Better

Denovo Audio brings high quality and class leading products to the DIY community at sensible prices. Their design philosophy: “High-End, but not High-Priced”.

The DIY Community

Working Together

Denovo has worked directly with the DIY audio community to bring new and exciting products to market. If there's something you'd like to see, let's work together and get it done.
