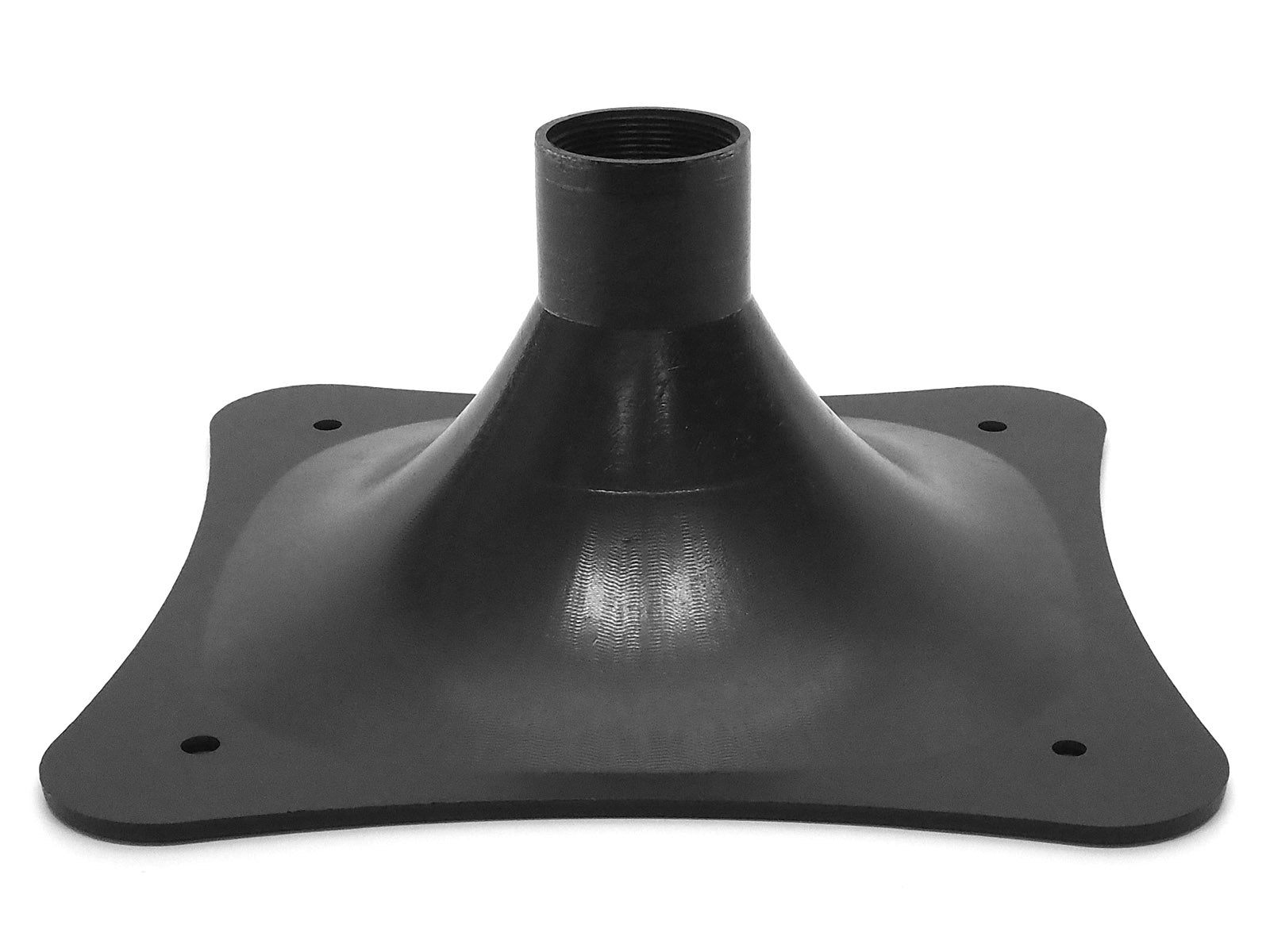

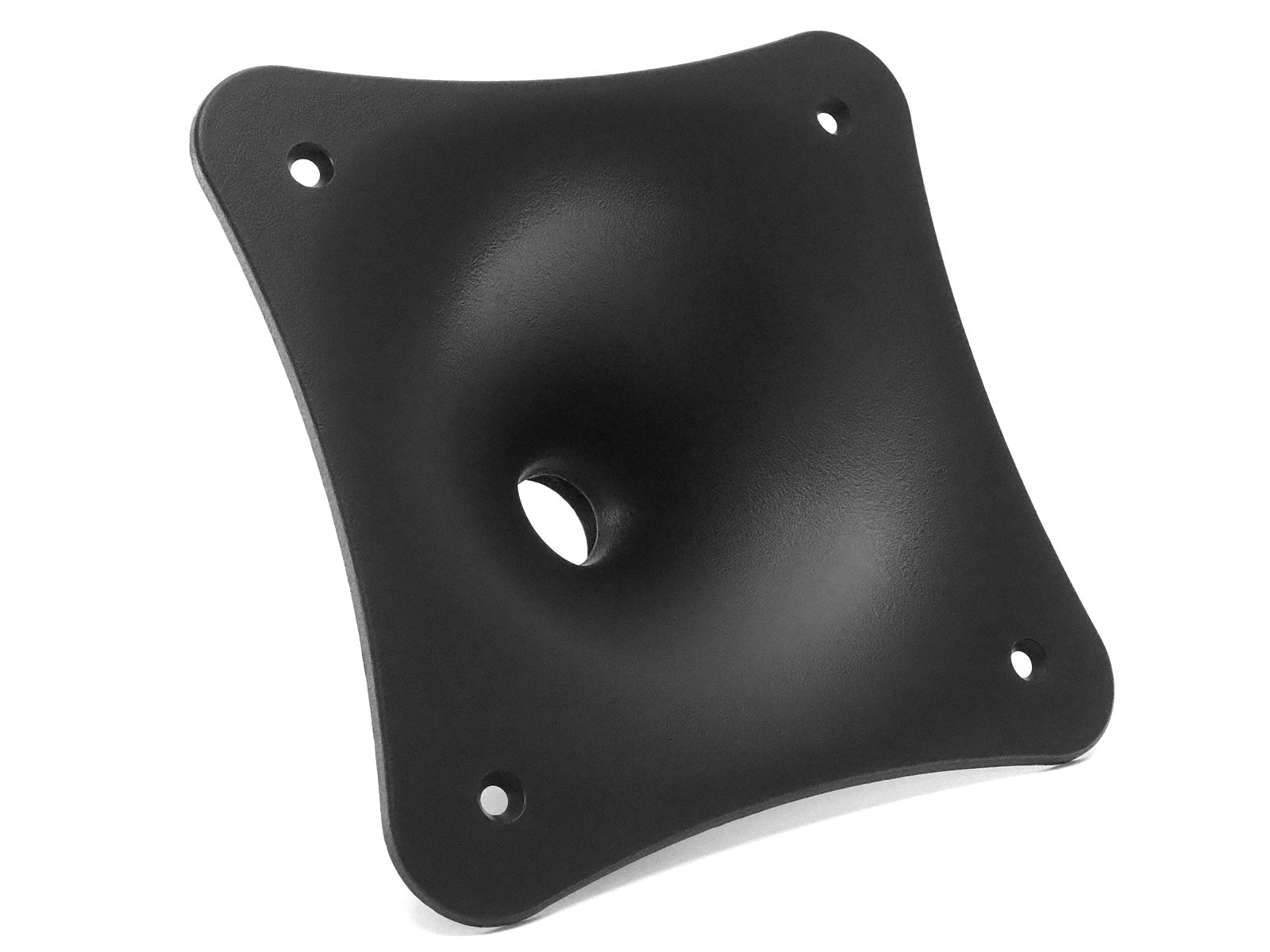

Denovo Audio OS-77S 1" Oblate Waveguide Screw-On

The Denovo Audio OS-77S is an Oblate Spheroidal design. The curved shape of an OS waveguide helps reduce diffraction effects, which then reduces distortion and coloration of the sound. The shape also improves directivity for a more focused sound dispersion. This can be particularly beneficial in applications where the sound needs to be directed towards a specific area or audience. The shape of this particular waveguide works well to keep the center-to-center spacing as close as possible.  This allows for a smoother crossover point, especially when working with MTM style speakers where the waveguide is positioned between dual woofers.

Helpful Note: Recommended for woofer sizes from 6" - 12". Minimum recommended crossover for a waveguide of this size would be about 2000hz. This model has a light matte finish but can be spray painted pretty easy.  Overall construction is strong and because it's a thinner material you can surface mount this waveguide and it will still look okay.

Denovo Audio Specifications
