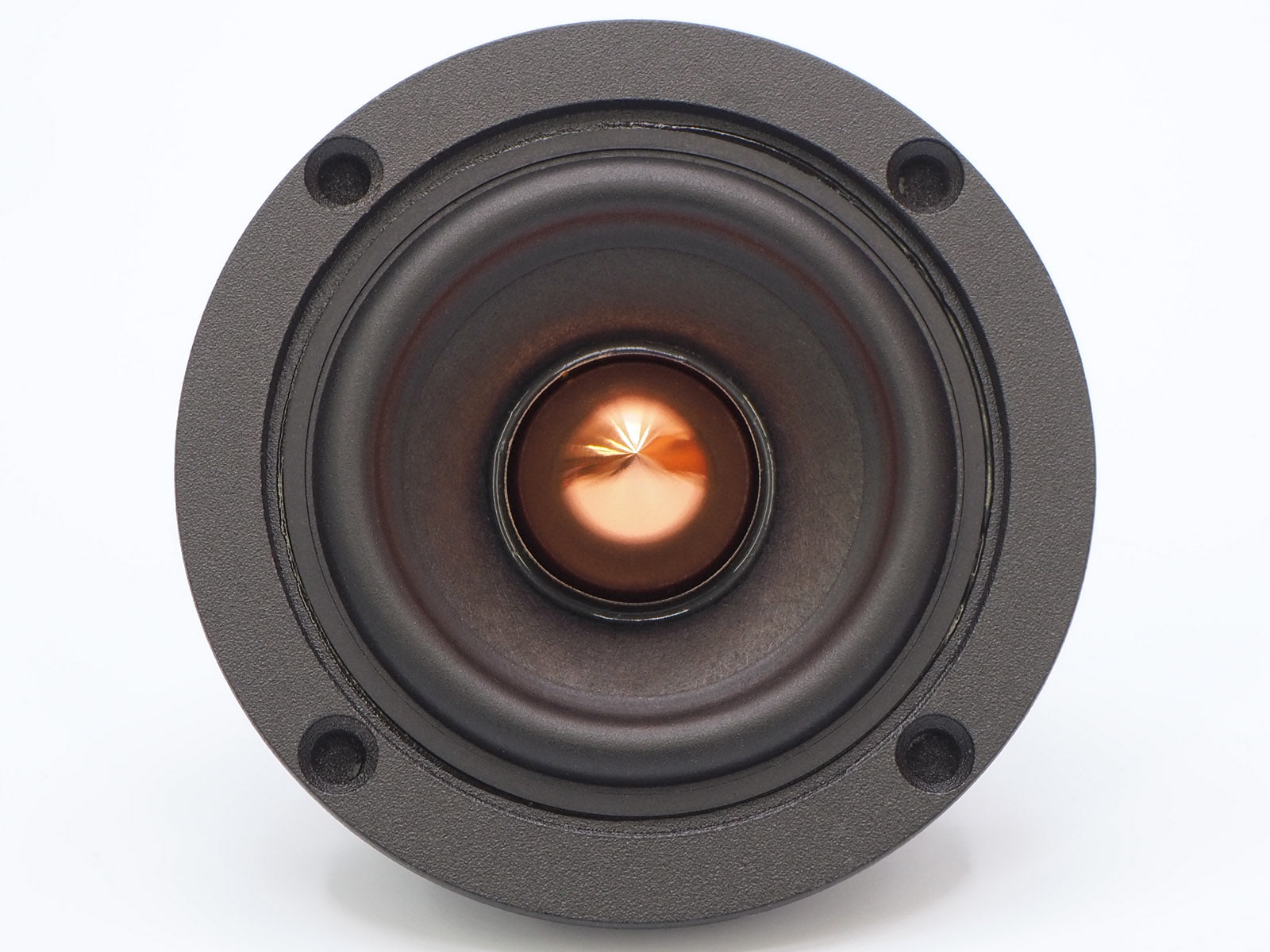

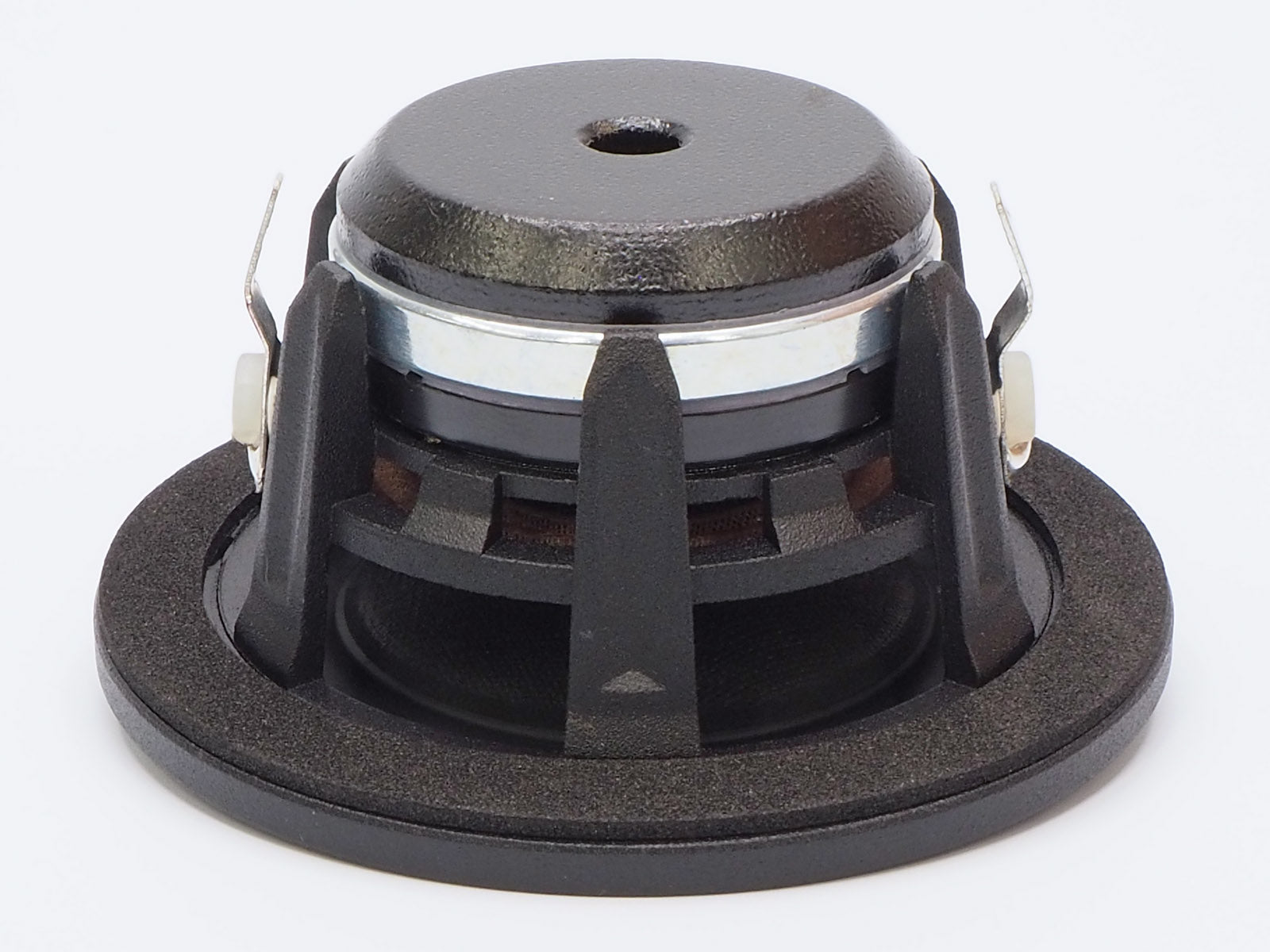

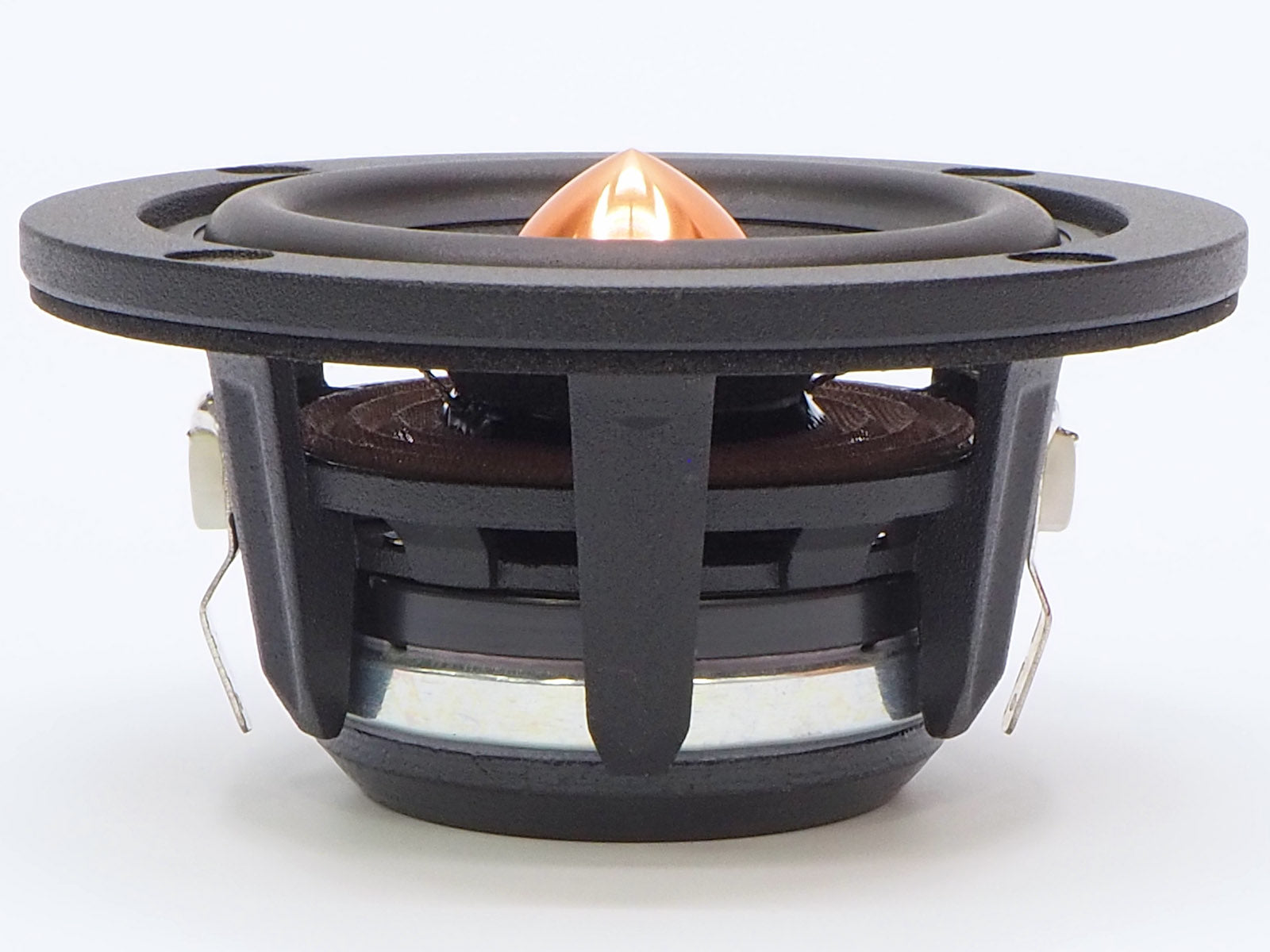

Denovo Audio PS74-4 Point Source 2-1/4" Full Range Woofer 4 Ohm

Denovo Audio PS74-4 Point Source 2 1/4" Full Range Driver 4 ohm.

Denovo Audio set out to fill the missing link in small full range drivers with their beautifully engineered 2.25" PS74-4 point source woofer. A great performer that also looks amazing. This full range uses a compact yet powerful neodymium magnet that's encased in a specially designed cast aluminum frame. The frame design helps with cooling, venting, and also reduces back-wave reflections. A custom curvilinear rubber surround allows sound to flow smoother from the paper cone which significantly reduces diffraction issues. A copper-anodized phase plug controls dispersion and gold plated terminals allow for easy hook up.

Full Range Highlights

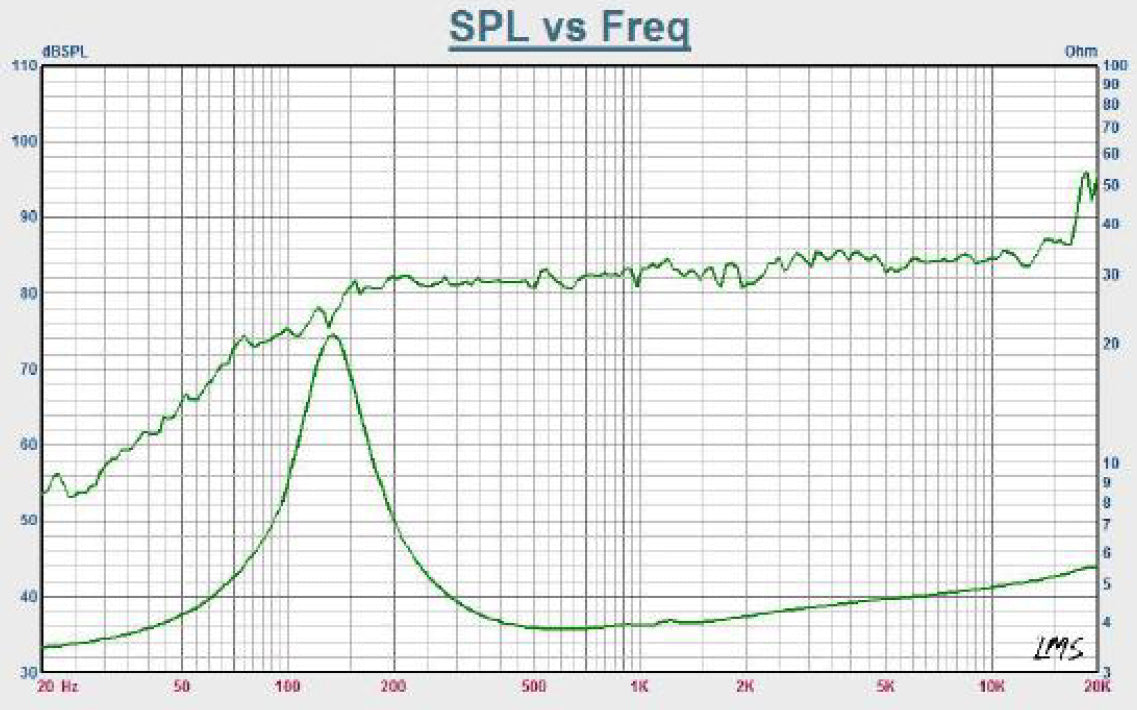

• Incredibly flat frequency response.
• Neodymium magnet to increase efficiency and reduce distortion.

• Paper cone for a smooth natural sound characteristic.
• Increase X-max for more bass output potential.

• Custom phase plugs to enhance off-axis dispersion.
• Custom curvilinear shaped rubber surround smooths the transition from the cone giving a flatter response.

PS74-4 Specifications

Thiele-Small Parameters
