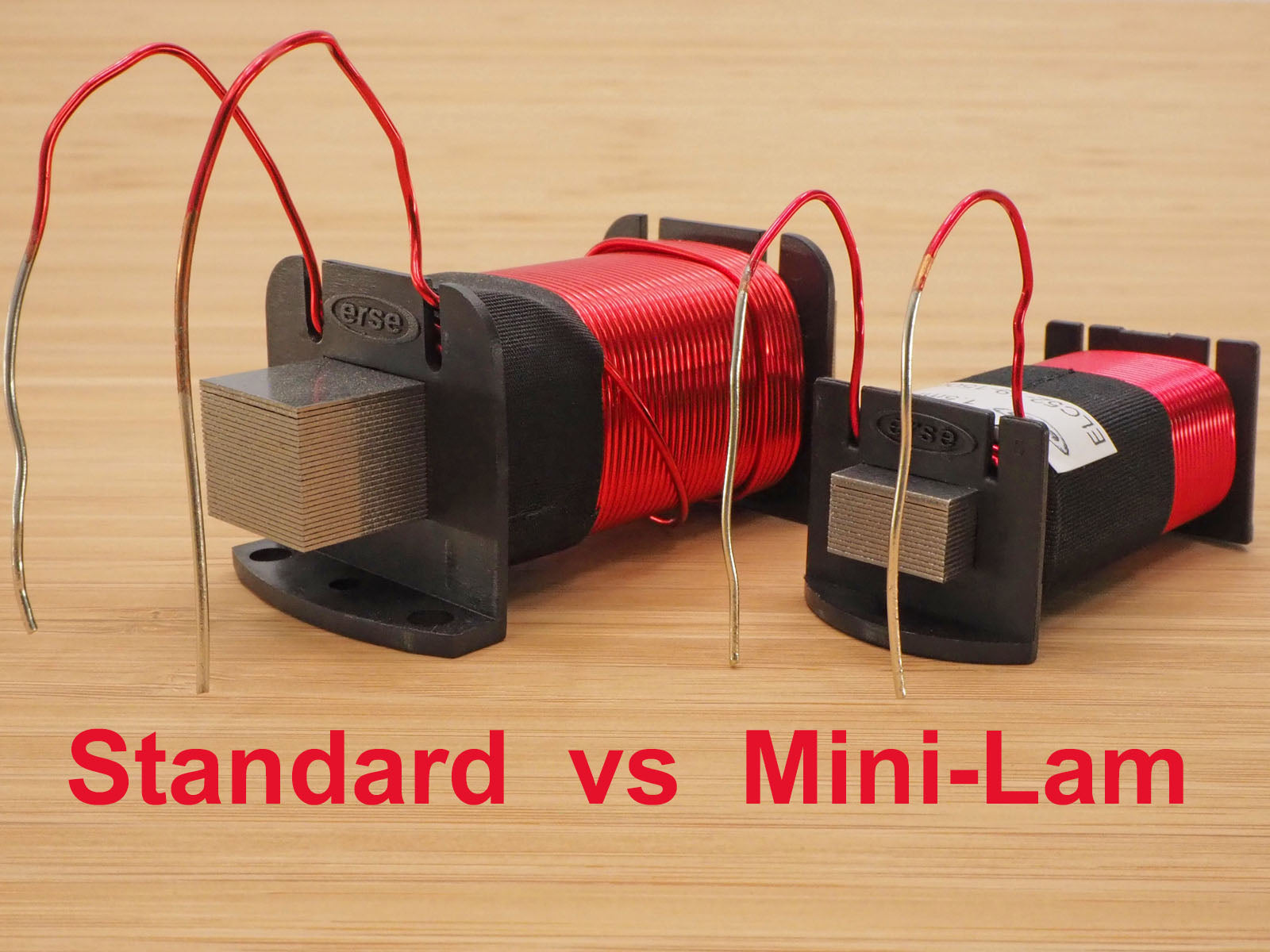

ERSE Mini-Lam™ iron core inductors are only 1" x 2.25" making them a perfect choice when you need large inductance values at a smaller size. These smaller laminated steel core coils are specially designed for frequencies below 10,000 Hz and ideal when used in a woofer circuits. The custom molded mini bobbin can handle high temperatures and is easy to mount with screws or rivets. Don’t trust your project to off brand parts, use what the professionals use.

  • 99.9% High purity copper
  • 3% Tolerance
  • 225 Watt RMS power handling
  • Perfect for woofer circuits
  • Longer tinned wire leads for easier installation

Made by: ERSE Audio

Cinergy part # 35-160

In stock
Price
$5.25

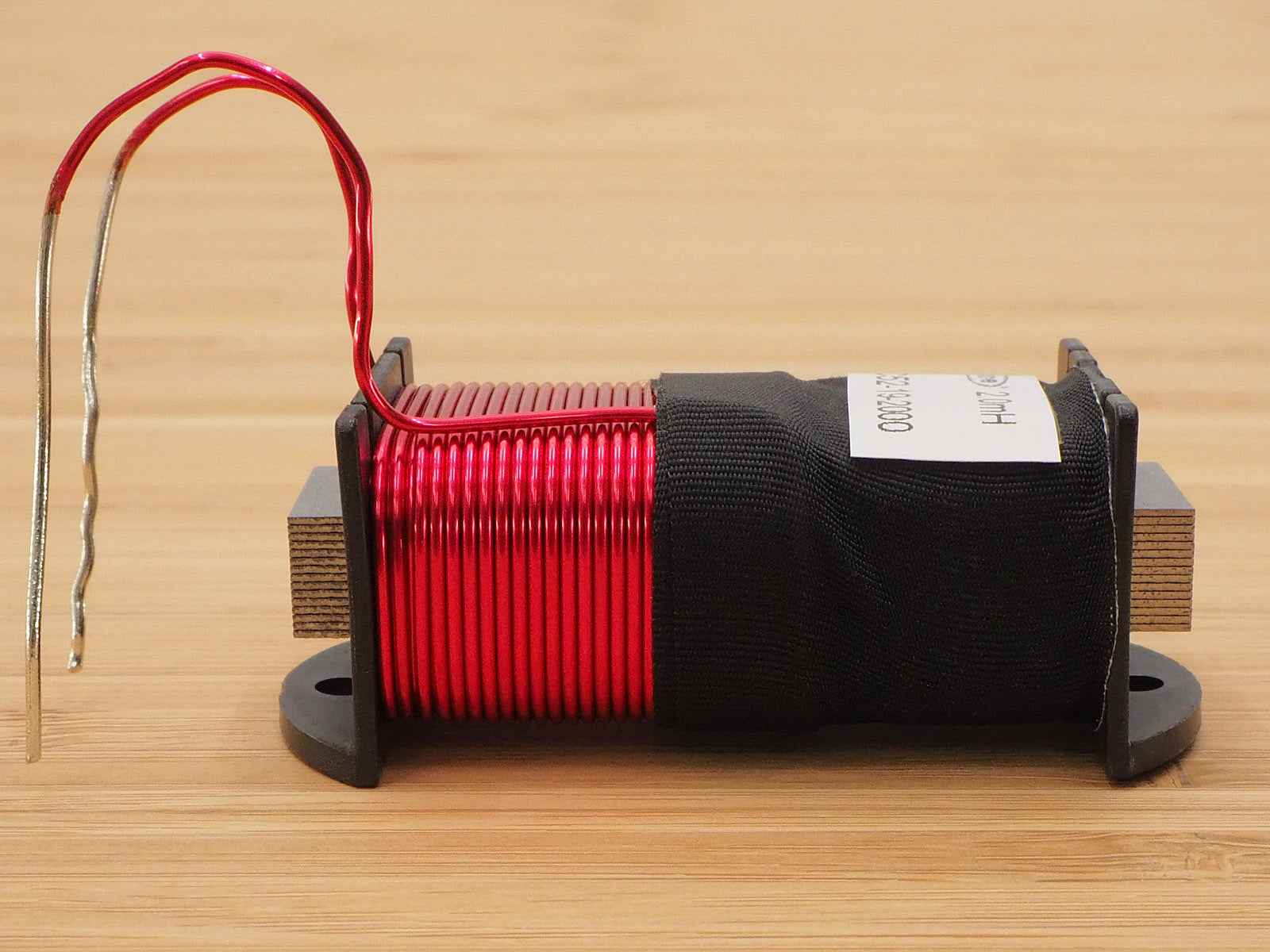

Quality coils begin with quality components. Every ERSE iron core inductor features their exclusive 99.9% copper Purity Guarantee while the cores use low distortion micro-thin 0.50mm laminated steel. ERSE coils are wound using precision layering equipment that maintains the crystalline structure of the wire and controls hysteresis tension. The advanced design of our iron core inductors minimizes core saturation, ensuring that your speakers deliver consistent performance even at high power levels for woofer or subwoofer circuits. Say goodbye to distortion and hello to crystal-clear sound. All 19 gauge inductors utilize a 1" by 1.6" bobbin on a .5" by 2" laminated iron core. The bobbin can handle high temperatures and the screw holes allow for secure mounting on your circuit board. ERSE also gives you 2.5″ wire leads with 1.2″ of that tinned for easy soldering.


ERSE Specifications

Model ELC52-19-2000
Inductance 2.0mH
Wire Gauge 19 AWG  (.9mm)
Tolerance 3%
Power Handling 225 Watts RMS
DC Resistance 0.26 Ω

Frequently Asked Questions

Why are the wire tips silver?

The tips are tinned from the manufacturer to make soldering easier. You should solder to the tinned tips, not the copper colored sections of an inductor.

Can I cut the wire leads shorter?

The silver tips have been tinned for easy soldering.  If you remove the silver part of the wire then you need to scrape off the copper colored coating from the wires until you see bare copper, then solder to that.

Are the wires positive and negative?

No.  Inductors do not have polarity.

Do I have to use screws for mounting iron core inductors?

No, you can use hot melt glue or any decent glue to hold them on your circuit board.  We usually recommend a zip tie over the inductor to hold it in place just in case your glue isn’t strong enough.

Precision

Crafted with precision and designed for superior performance. ERSE high-quality inductors are the perfect choice for audiophiles and speaker enthusiasts looking to elevate their sound experience. Decades of experience you can trust during your next build.

Quality Parts

ERSE Audio Grade Capacitors are great for all audio applications. From Non-polar electrolytic to polypropylene caps, ERSE has what you need to make your design not only work, but work at the level of quality you expect. All caps come with low tolerances, low dissipation factors, and excellent all around electrical characteristics.

ERSE Products

Capacitors

ERSE produces a large variety of capacitors with 3% - 5% tolerances and power handling over 600 volts.

Inductors

Decades of experience making air core and iron core inductors using pure 14-22 gauge wire.

Resistors

From 5 watt to 25 watt, ERSE can supply nearly any value needed.
