HiVi B4N 4 Inch Midbass Woofer — Includes Install Kit

HiVi B4N 4 Inch Midbass Woofer — With Installation Kit.

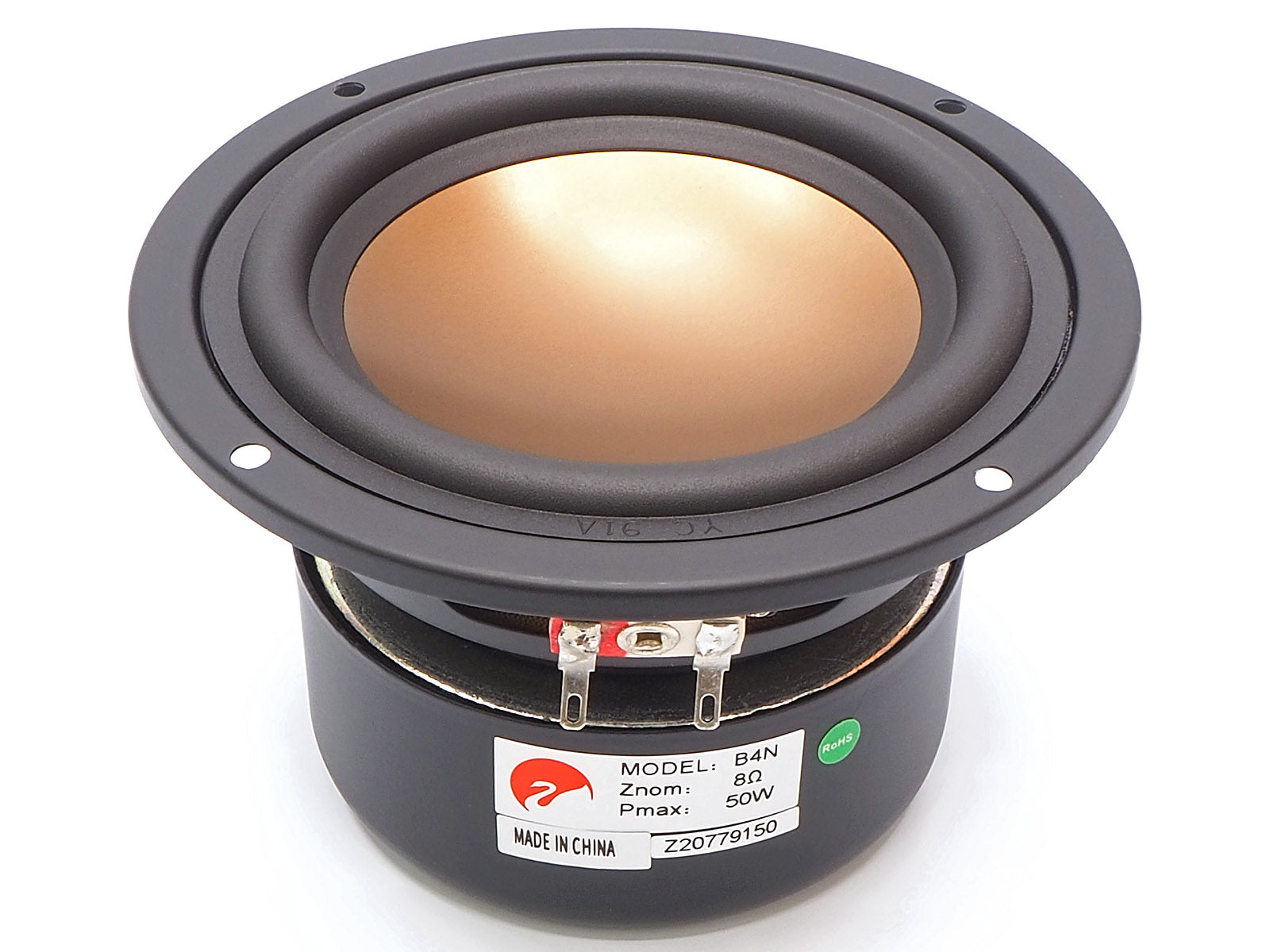

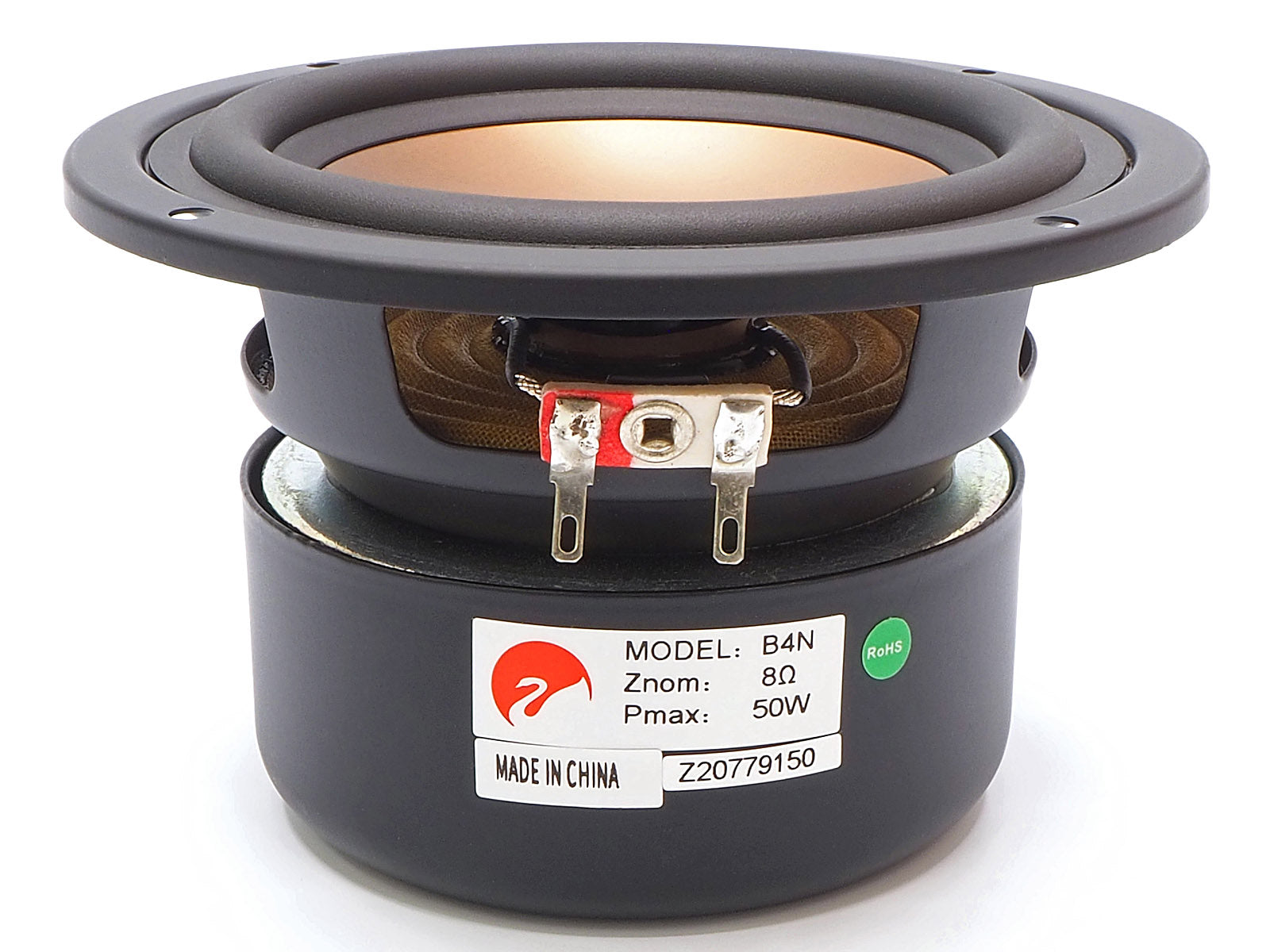

The HiVi B4N is a well known driver in the DIY speaker community, mostly famous as the midbass unit in Paul Carmody’s Overnight Sensations bookshelf speaker. It features that distinctive bronze-anodized aluminum cone giving it a striking look with and a punchy, controlled low-end performance. Speaker builders often choose this 4-inch driver because its smooth, well-behaved frequency response makes crossover design straightforward, allowing it to easily blend with a variety of tweeters without complex crossover networks.

To save you a trip to the hardware store, we include a custom-matched Installation Kit at no extra charge so you can start building immediately. Each B4N woofer you buy comes with a pre-cut gasket, two gold plated quick connect terminals (part 69-514), and four bronze colored screws (part 69-222) for free.

Highlights

• Proven Performance: The exact driver used in the highly popular Overnight Sensations speaker kit and many other bookshelf designs.
• Rigid Aluminum Cone: Bronze-anodized aluminum delivers clean midbass punch and clear midrange while minimizing cone breakup.

• Smooth Frequency Response: A smooth roll-off simplifies crossover design for both beginner and experienced builders.
• Optimized Motor Structure: Linear suspension system, rubber surround, and shielded motor allow for clean excursion and flexible enclosure placement.
• Complete Installation Kit Included: Ships with the exact matching mounting screws and quick-connect wire terminals needed to start your build immediately.

HiVi B4N Specifications

Thiele-Small Parameters
