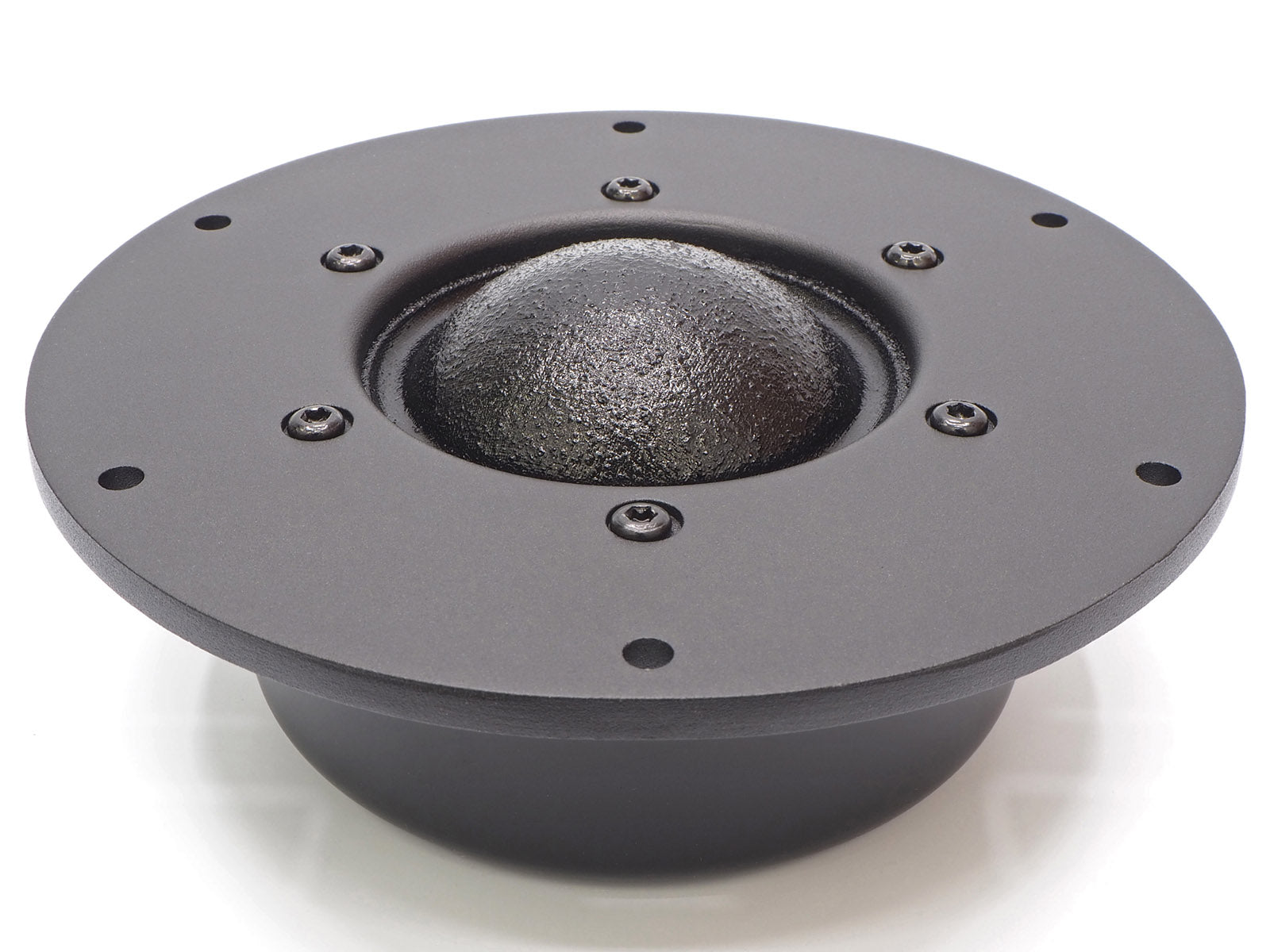

HiVi DMB-A 2-Inch Fabric Dome Midrange — Includes Install Kit

HiVi DMB-A 2 Inch fabric dome midrange — With Installation Kit.

Dedicated soft dome midrange drivers are a proven, highly sought-after solution in classic 3-way designs, and the HiVi DMB-A brings that performance to the DIY community at a very reasonable price point. Built around a large 50mm (2-inch) hand-treated fabric dome coated with a proprietary damping compound, this driver delivers open, transparent vocal reproduction without the aggressive breakup spikes typical of rigid metal diaphragms. Its broad radiating profile provides wide, uniform horizontal dispersion, ensuring an effortless acoustic transition to your high-frequency tweeter.

The motor is an underhung design that keeps the voice coil immersed entirely within the magnetic gap. The voice coil is wound with copper-clad aluminum wire on an aluminum former and backed by a fully shielded symmetric double-magnet ferrite system. This design gives you a high 80 watt power handling, an efficient 92 dB sensitivity (2.83V/1m), and low harmonic distortion across its usable 500 Hz to 6,500 Hz frequency response.

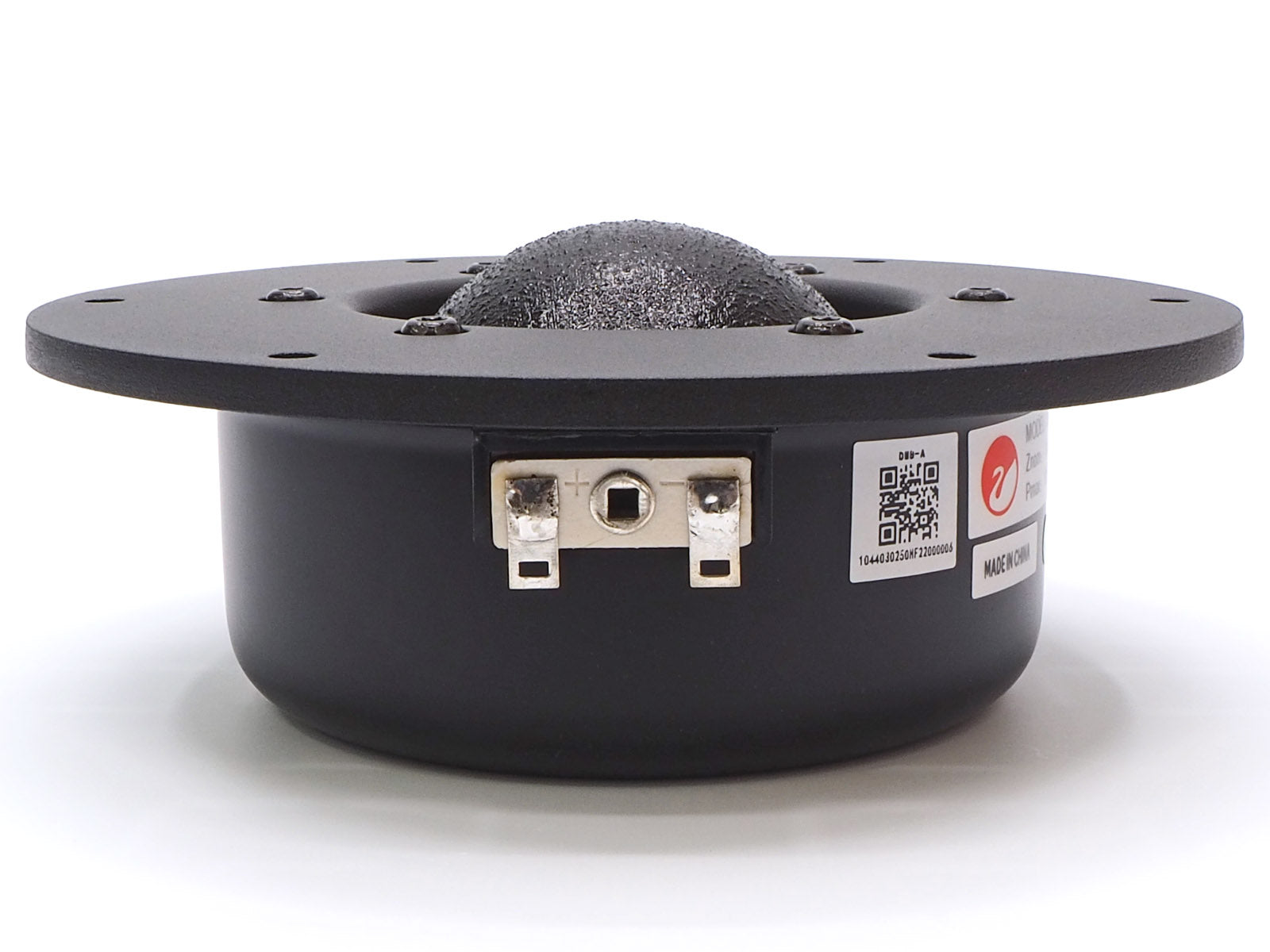

For speaker builders, using the DMB-A is pretty straightforward. The rear of the driver is fully enclosed with a tuned, non-resonant acoustic chamber. Because the rear motor is completely sealed, the DMB-A can be dropped directly onto the front panel on your speaker without needing a separate internal chamber to protect it from woofer back-pressure. It also has a heavy cast aluminum faceplate for easy flush mounting. This one is tough to beat for it's price.

To save you a trip to the hardware store, we include a custom-matched Installation Kit at no extra charge so you can start building immediately. Each midrange you buy comes with a pre-cut gasket, two quick connect terminals, and six screws for free.

Highlights

• Wide-Dispersion 50mm Dome: Coated textile dome produces smooth, natural midrange with wide off-axis coverage across the critical 800 Hz to 6 kHz vocal band.
• Underhung Motor Topology: Short voice coil in a tall magnetic gap provides consistent drive force and exceptionally low distortion.
• Self-Enclosed Back Chamber: Integrated rear chamber controls back-wave reflections and eliminates the need to build an isolated midrange box inside the cabinet.
• Complete Installation Kit Included: Ships with the exact matching mounting screws and quick-connect wire terminals needed to start your build immediately.

HiVi DMB-A Specifications

Thiele-Small Parameters
