HiVi T20-8 3/4 Inch Dome Tweeter — Includes Install Kit

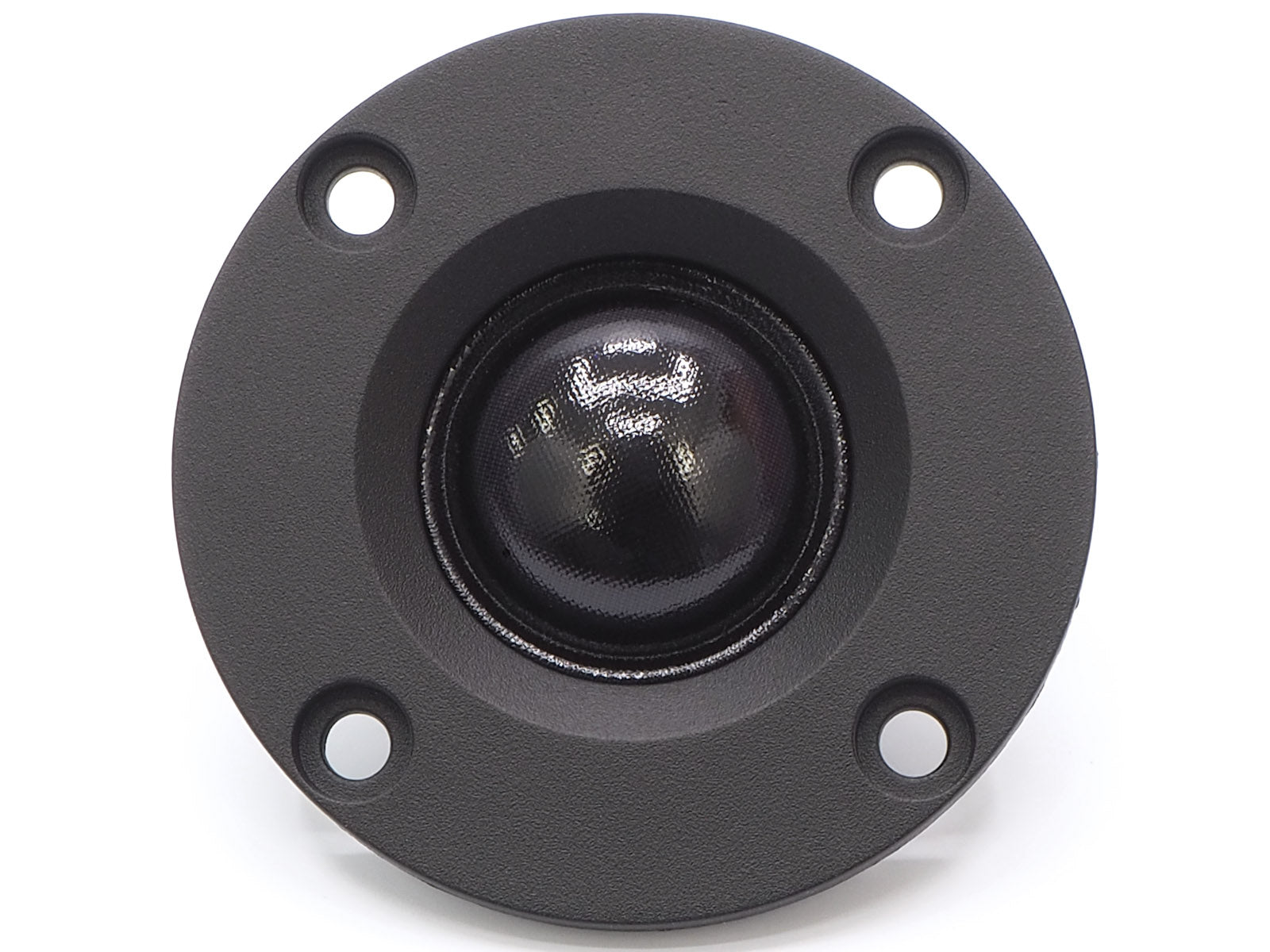

HiVi T20-8 3/4 Inch (20mm) textile dome tweeter — With Installation Kit.

The HiVi T20-8 has a smooth high-frequency response from 2,000 Hz to 20,000 Hz with minimal resonance. The compact 2 inch faceplate works great for tight baffle layouts and its neodymium magnet keeps the mounting depth around a half an inch for projects where standard tweeters won't fit. This tweeter is used in the newest upgraded version of Paul Carmody's Overnight Sensation series. It's well tested and ready for your next project.

To save you a trip to the hardware store, we include a custom-matched Installation Kit at no extra charge so you can start building immediately. Each T20 tweeter you buy comes with a pre-cut gasket, two gold plated quick connect terminals, and four screws for free.

Highlights

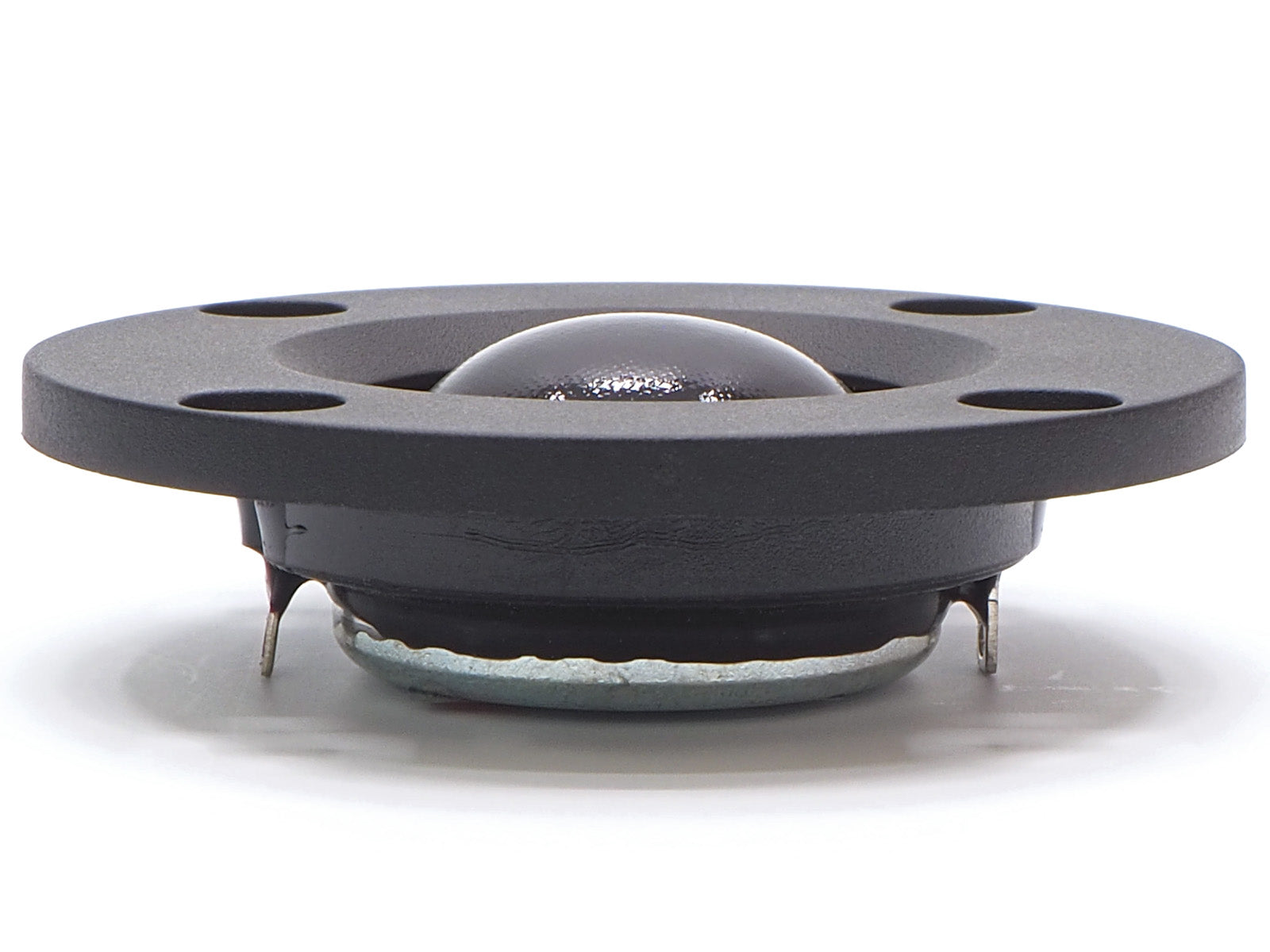

• Compact Footprint: 2" overall faceplate diameter and 0.5" mounting depth allow for easy installation in tight spaces.
• Neodymium Motor System: Provides high magnetic flux to keep sensitivity at 89 dB while minimizing rear-enclosure depth.
• Smooth Reproduction: Soft textile dome delivers natural high frequencies from 2,000 to 20,000 Hz.
• Complete Installation Kit Included: Ships with the exact matching mounting screws and quick-connect wire terminals needed to start your build immediately.

HiVi T20-8 Specifications

Thiele-Small Parameters
