Mirage Nano-100 AMT Air Motion Transformer Tweeter 4 Ohm

The Nano AMT air motion transformer tweeters are reintroduced to the Mirage Tweeter Series by Denovo Audio.

The Nano-65 and Nano-100 AMT tweeters were both used in high end studio monitors for over 14 years. In 2022 the company made some cosmetic changes to their line-up and started using the tweeter with a different shaped mounting plate that had their brand name cast into it. We asked them if there was any possibility to continue manufacturing the previous well trusted models. After some back and forth conversations, Denovo was given exclusive rights to restart both AMT tweeter versions for the DIY community using the same manufacturer, same components, and same quality control tests.

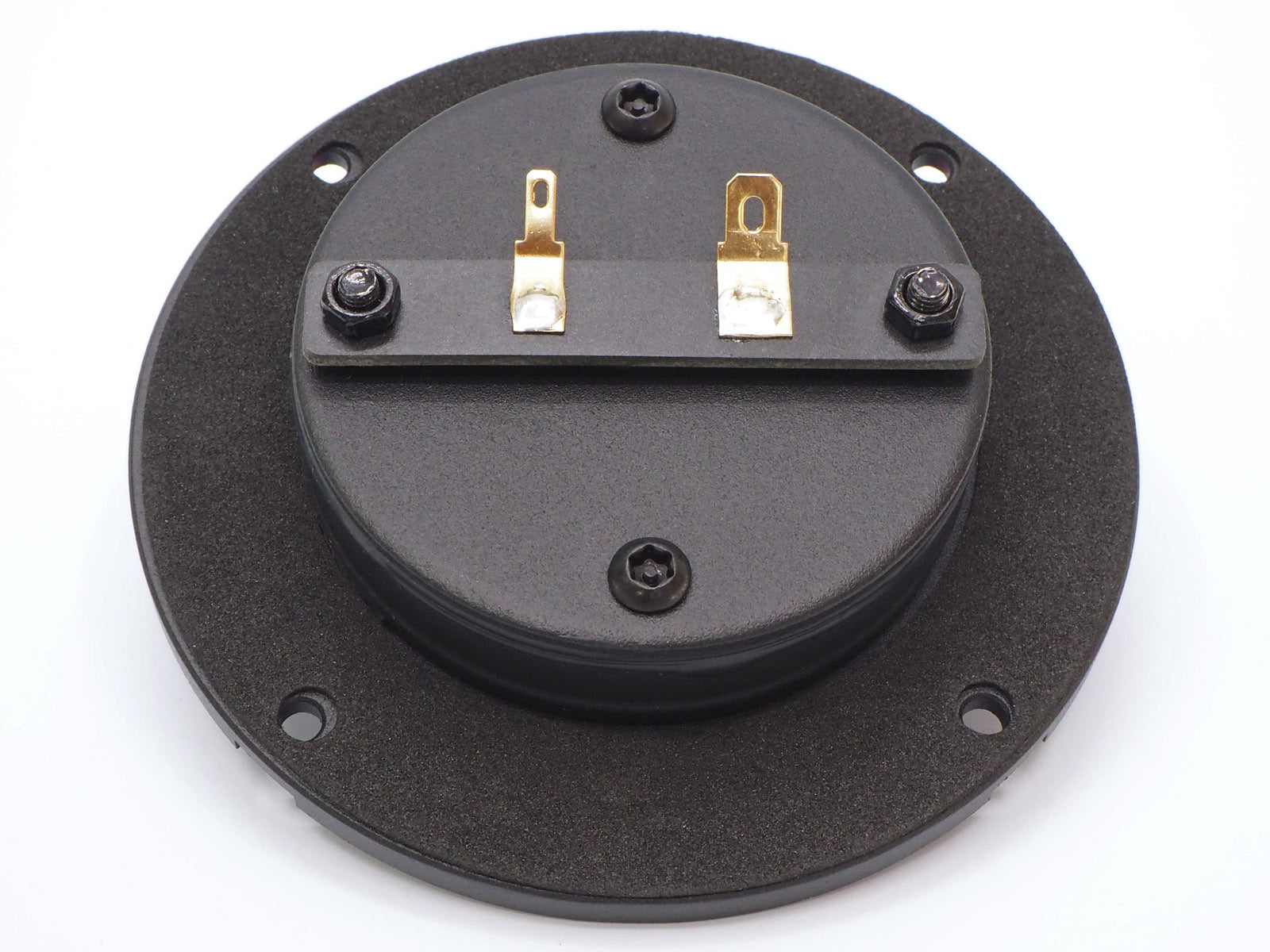

The first thing you'll notice when picking up the Nano is the build quality and surprising weight. This is due to a nearly 1/4" thick solid aluminum mounting frame. This overbuilt mount completely eliminates any flex or stress to the thin pleated film inside. This folded film diaphragm is paired with a neodymium magnet drive to keep distortion low and sound quality high. The result is a tweeter that not only sounds amazing but also projects a wide, immersive soundstage which is perfect for your stereo or multi-channel speakers. The sealed back design allows you to use this AMT in smaller speaker builds without needing an extra sealed rear chamber. The 100mm diameter of the Nano-100 is great for drop in replacements in many speaker designs or commercial speakers.

What makes the Nano air motion transformer tweeters perfect for your next DIY build? They take the best of ribbon technology and push it further. Instead of a flat ribbon, they use a folded diaphragm that moves more air, resulting in a smoother, more detailed sound. This clever trick invented by Oskar Heil lets them interact with air more efficiently, producing sound that's not only louder but also crystal clear - especially in the high-frequency ranges that add sparkle and detail to your music. This helps reduce listener fatigue, making them perfect for long listening sessions.

Nano AMT tweeters are known for their incredibly wide and accurate frequency response over 30 kHz, which means they capture the subtleties and nuances of music with remarkable clarity. They're also super responsive and able to start and stop notes instantly, just like live music. This precision, combined with low distortion, brings your music to life with a sense of realism you might not get from other tweeters.

If you just need us to break down all of this techno jargon so you can easily explain to your friends and family why you absolutely needed these tweeters, well here you go: The Nanos give you incredibly clear and dynamic high frequencies. Because of how the AMT "squeezes" air rather than pushing it like a traditional tweeter, distortion is significantly reduced. This leads to a cleaner, more accurate sound that really lets the details in your music shine through. So, if you're looking for detailed, powerful high notes without harshness, even in a smaller build, the Nano AMTs are definitely worth using.

Highlights

• Light weight folded diaphragm gives a very detailed high frequency sound
• Smooth natural sound that's easy on the ears even at long listening sessions
• Designed to produce a wide and immersive soundstage
• Incredibly thick aluminum frame eliminates stress or flex on the diaphragm
• Frequency response over 30khz
