HT-8 Speaker Kit with Flat Pack

The HT-8 speaker can play at surprisingly high volumes and still remain smooth and detailed for a very well balanced sound. The SEOS-10 waveguide has excellent directivity control for a very wide "sweet spot" so everyone hears the same thing without any significant changes in sound no matter where they sit in the room. Perfect for Left/Center/Right speaker use in medium to large sized rooms, or as a surround option in even the largest home theaters.

All name brand components
Includes the custom circuit board
Includes the MDF flat pack for assembly

Cinergy part # 92-504

In stock

Price: $209.24

Minimum Order is 2

* Price is per kit. If you need a single kit, please contact customer service before ordering.

Speaker Shipping Information

* Due to package size and weight this product does not qualify for free shipping.

* This kit takes longer than other products to package because there are many parts included and we test the compression driver on every kit prior to customized packaging. We take a lot of pride in how we package your order so please allow up to 2 weeks for shipping.

Quantity

Frequently Bought Together

Description

The HT-8 speaker kit for home theater use.

With a depth of only 7.5" they will easily fit behind acoustically transparent screens if needed. Like the rest of the HT series, they're designed so they can be traditionally mounted or installed in a baffle wall set up. The HT-8's are capable of being used as matching Left/Center/Right speakers in large rooms or as a complete system including your surround sound speakers. The HT-8 speaker kits are very efficient and give effortless high level playback even from AVR's with even modest power output. Quality name brand professional components give this speaker incredibly low distortion. The Celestion 8" woofer has a very smooth frequency response and decent power handling. The custom Celestion compression driver stays surprisingly smooth and detailed even at high output levels for a very well balanced sound. A SEOS-10 waveguide gives you excellent directivity control for a very wide "sweet spot" so everyone hears the same thing without any significant changes in sound no matter where they sit in the room. All of that gets installed'knock down' style flat pack cabinet that you can glue together very easily. The HT-8 speaker kits will handle 250 watts and play at 115db. Designed for home theater use and should be paired with a subwoofer system for best sound quality. We would normally recommend pairing these high output HT-8's with at least two powerful 15" subwoofers or more. These speakers can keep up with just about any subwoofer system.

Speaker Highlights

Very detailed sound with superb dynamics.
Easy to power with a true 94db 2.83v/meter sensitivity.
Handles 250 watts and plays over 115db.
Quality name brand components throughout entire speaker.
Low distortion from the woofer and compression driver.
SEOS-10 waveguide gives you a larger 'sweet spot'.
Easy to assemble carb 2 compliant MDF flat pack cabinet.
Compression drivers professionally tested for matched sets per order.

HT-8 Specifications

Designer	Matt Grant
Frequency Response	70hz - 20khz (+/-3db)
Power Range	5 - 250 watts
Sensitivity	94db - 2.83v/1m
Impedance	8 Ohm
Crossover Point	1500hz
Woofer	8" Celestion
Tweeter	CDX1-1445DA custom diaphragm
Dimensions	12.5" Wide x 16.75" High x 7.5" Deep
Cabinet Material	Carb-2 compliant 1/2" MDF and 3/4" MDF front panel
Assembled Weight	About 20 pounds

Quality Control: Every compression driver gets a professional 5 point quality inspection test before we package your kits. We also frequency match them so that your set of speakers all sound the same. We don't know of any other retailer that completes this level of quality control. We do this because you probably don't have the testing gear or parameters for all of these tests. Because of this type of quality control it can take longer than a week to package and ship your speaker kits.

HT-8 Kit Parts

1-	Celestion 8" woofer	$ 69.50
1-	CDX1-1445DA compression driver with custom diaphragm	$ 59
1-	Denovo Audio SEOS-10 Waveguide	$ 27.15
1-	Set of crossover components	$ 28.51
2-	Denovo Audio port tubes	$ 4.08
1-	CNC cut front baffle	$ 15.00
1-	CNC cut flat pack	$ 25.00
1-	#8 pan head screws	$ 0.75
2-	Pieces of gasket tape	$ 1.00
1-	Circuit board, board terminals, stand offs, and screws	$ 8.00
1-	Set of compression driver bolts and crimp terminals	$ 1.50
	Packaging Material	$ 4.00
	Retail Parts Cost	$ 243.49
	Discounted Price	$ 209.24
	Kit Savings	$ 34.25

Ordering Note: Minimum order is two. If you ordered one in the past and need one for a center, please contact customer support. Kits are sold as full kits, sorry no substitutions or subtractions. This kit includes the flat pack cabinet but they are now being packaged and shipped differently. They are priced at cost ($25 each) and because of this they can't be shipped "for free". During check out the site will calculate shipping costs for just the flat packs, the other parts ship for free.

'HT' Series Speaker Kits

by Matt Grant

This line of speakers was designed for high quality truthful audio reproduction across a wide dynamic range and are ideally suited for home theater or small screening room use. All designs in this series are timbre matched allowing seamless integration of LCR and surrounds. These speakers have been designed and tested to work well in both normal or baffle wall installations. They are intended to be used with fairly powerful subwoofer systems to get the best overall listening experience.

Achievable distance for true reference level playback at the listening position.

HT-6: 6" woofer and SEOS-8 waveguide. Reference levels up to 9' with AVR power and 15' with max rated amplifier power.

HT-8: 8" woofer and SEOS-10 waveguide. Reference levels up to 12' with AVR power and 22' with max rated amplifier power.

HT-88: Dual 8" woofers and SEOS-77 waveguide. Reference levels up to 15' with AVR power and 25' with max rated amplifier power.

HT-10: 10" woofer and SEOS-12 waveguide. Reference levels up to 15' with AVR power and 25' with max rated amplifier power.

HT-12: 12" woofer and SEOS-15 waveguide. Reference levels up to 16' with AVR power and 30' with max rated amplifier power.

HT Speaker Kit Features

Name Brand Woofers

Name brand professional grade woofers built by Celestion. The 6" - 12" woofer models are chosen to work great in home theaters.

Compression Drivers

Professional grade compression drivers from Celestion with customized internal diaphragms for smoother sound in home audio.

SEOS™ Waveguides

A huge "sweet spot" so the whole family can enjoy the show. And no more harsh sounding movies or music with these waveguides.

Reference Level Output

Get reference level sound even with a seating position up to 16' away using only AVR power and up to 30' with max rated power.

Denovo Audio

Cabinetry

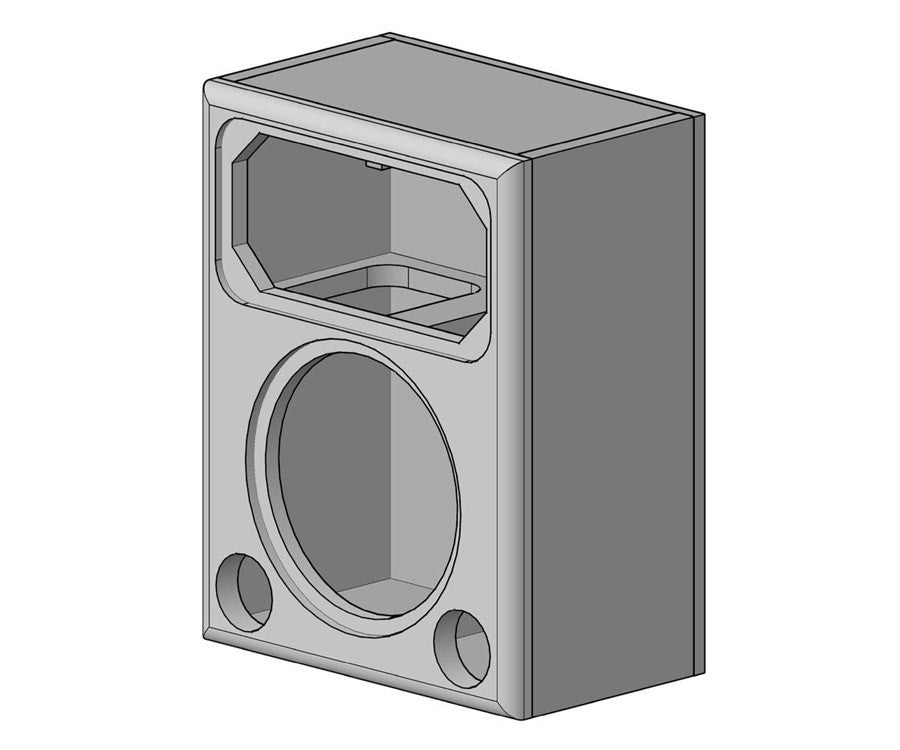

All HT Series cabinets are made by Denovo Audio from CARB 2 compliant material. The cabinets are cut using an industrial grade CNC router for incredible accuracy. Interlocking braces add panel stiffness while the rabbet joints on the back panel help align all pieces for easier assembly and increased rigidity.

HT Speaker Customer Photos

FAQ's for the HT Speaker Kits

Do I need to cut the ports to a different length?

HT-6 ports should be cut for a total length of 2".

HT-8 ports do not need to be cut down.

HT-88 ports do not need to be cut down.

HT-10 ports should be cut for a total length of 3".

HT-12 ports do not need to be cut down.

Where's the best place to put the crossover?

After you assemble your crossover network, it can be put on the inside of any panel that's easiest for you to work with. But most people put it on the rear panel.
