The Titan-815LX Baltic birch standard speaker cabinet.

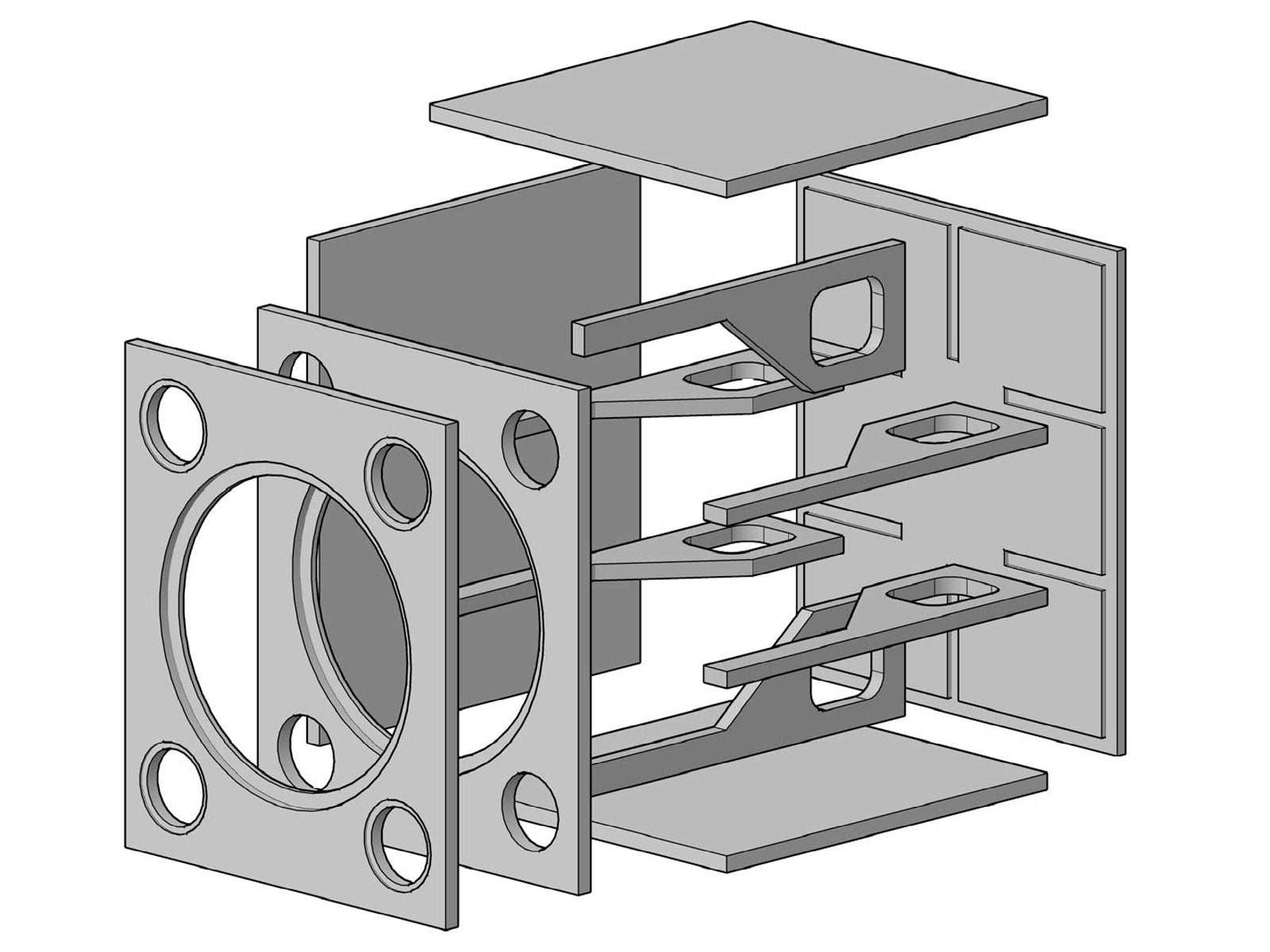

Designed and produced in the USA by Denovo Audio. The Titan-815LX cabinet is a 4.0 cubic foot flat pack made from 13 ply 3/4" Baltic birch. It's an extremely solid cabinet with six full depth angled braces and comes with a 1.5" thick front baffle. Every panel is cut with an automated CNC router so that the pieces fit together perfectly in rabbet joints and dado grooves. Not only does this make assembly much easier and more accurate, but also gives you a stronger enclosure because there's more surface area for the glue to bond to. This cabinet gives you a net internal volume around 4.0 cuft after subtracting the woofer and braces. The well thought out bracing system allows you to assemble the entire cabinet quickly and easily with no need for screws or nails.
Knock-Down Cabinet Highlights
- Made from 13 ply 3/4" Baltic birch that is Carb 2 compliant
- 6 full depth angled braces eliminate all panel flex
- 1.5" thick reversable front panel for added strength
- Rabbet joints and dado grooves help align panels for easy assembly
Specifications
| Manufacturer | Denovo Audio |
| Material | 13ply Baltic birch |
| Frequency Response | 38hz and up |
| Woofer Cutout | 15.38" |
| Inner Cutout | 14" |
| Dimensions | 19.5" Wide x 22.5" High x 21.5" Deep |
| Assembled Weight | About 50 pounds |
Ordering Note: These are only available to people that are ordering or have ordered Titan kits. There are no cutouts for binding posts or terminal cups because everyone likes to use something different. Minimum order is two. If you ordered one in the past and need one for a center, please contact customer support. Due to weight and size, this cabinet does not ship for free . Please allow extra time to package these because we package them differently depending on the rest of your order.
Titan Series Speaker Kits
by Matt G and Erich H
The Titans are powerful 3-way speakers designed to give you the most clarity and output potential of any home theater speaker kit available. They use name brand pro-audio components that are voiced to sound more like home audio speakers. No need to worry about harsh sounding speakers with the Titans. And no need to worry about output potential because these speakers can fill even the largest home theaters with crystal clear dynamic sound. They are ideally suited for large home theaters and tested to work well in both normal or baffle wall installations. They must be used with powerful subwoofer systems to get the best overall listening experience.
Current Models.
Titan-815LX: 1" neodymium compression driver. 8" Celestion midrange. 15" Eminence low frequency woofer.
Titan Speaker Kit Features
2-Way Waveguides
A massive waveguide that incorporates an 8" midrange for crystal clear sound without any harshness. Huge "sweet spot" so the whole family can enjoy the show.
Name Brand Woofers
Name brand professional grade woofers built by Celestion. The 6" - 12" woofer models are chosen to work great in home theaters.
Compression Drivers
Professional grade compression drivers from Celestion with customized internal diaphragms for smoother sound in home audio.
Reference Level Output
Get reference level sound even with a seating position up to 18' away using only AVR power and up to 34' with max rated power.
Denovo Audio
Cabinetry
All Titan Series cabinets are made by Denovo Audio from CARB 2 compliant material and cut using an industrial grade CNC router for incredible accuracy. Interlocking braces add panel stiffness while the rabbet joints on the back panel help align all pieces for easier assembly and increased rigidity.
Titan Customer Photos
FAQ's for the Titan Speaker Kits
Why are the cabinets optional on Titan kits?
Baltic birch cabinets are fairly expensive and heavy, so shipping costs can also get pretty costly. Some people would rather save the money and build their own.
Why are the brackets optional on this speaker kit?
The brackets are fairly easy to make and some people may not want to spend the extra money on them. You can use two triangular or square pieces of wood to hold the large horn in place if you didn't want to purchase the horn brackets.
Do I need to cut the ports to a different length?
Titan-815 ports should be used at full length.
Where's the best place to put the crossover?
After you assemble your crossover network, it can be mounted on the inside of any panel that's easiest for you to work with. Some people mount the crossover on top of the cabinet just behind the midrange for easy wiring to the other parts.
